The Broadcast Pix 750 Control Panel
Take command of your live productions with the Broadcast Pix 750 Control Panel—a compact, intuitive interface built for speed, flexibility, and precision. Designed for today’s fast-paced environments, the 750 gives operators instant access to sources, graphics, audio, streaming, and PTZ camera control, all in one streamlined surface. Whether you’re producing for broadcast, education, government, or live events, the 750 delivers professional results with the reliability you can count on.
KEY FEATURES
Designed for Fast-Paced Productions
- Source Buttons: 12 dedicated source buttons plus 12 more accessible with the shift function, ensuring quick access to every input.
- 6 Key Layers: Overlay graphics, titles, or video with up to six keyers, each offering full control of source selection and transitions.
- Dedicated Controls: Separate, easy-access controls for recording, streaming, audio mixing, and PTZ robotic cameras, reducing menu-diving and keeping your focus on the live event.
- Macro Row: Trigger pre-configured sequences or effects with a single button push. Macros streamline repetitive steps into one-touch commands for flawless, efficient operation.
Precision Camera and Transition Control

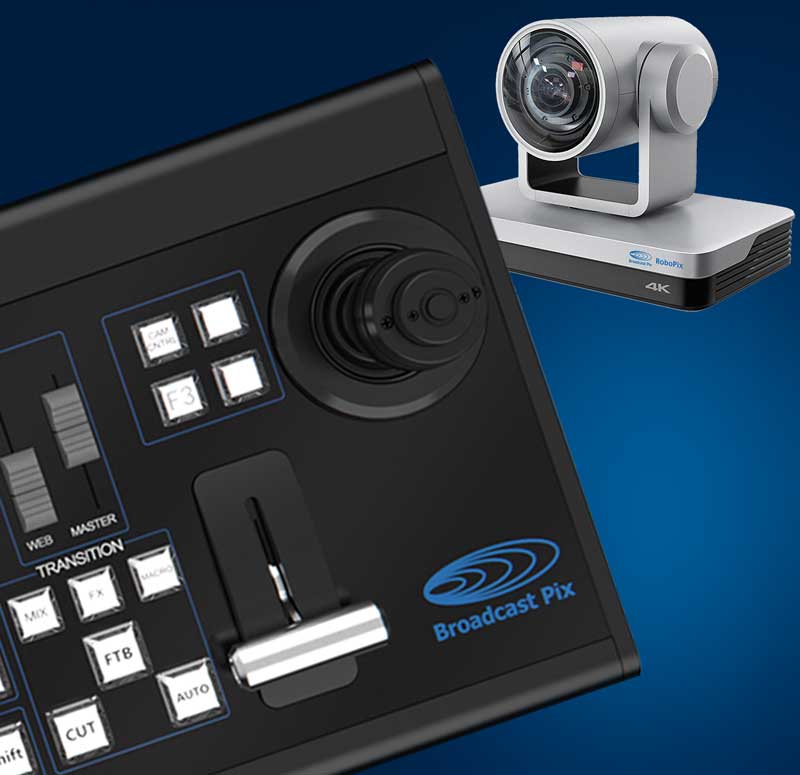

- 3-Axis Joystick: Smooth, accurate PTZ camera control for pan, tilt, zoom, and focus adjustments.
- Multiple Transition Modes: Instantly cut between sources, add professional dissolves, or trigger special FX transitions. An FTB (Fade to Black) button ensures a clean program close every time.
- Auxiliary Outputs: Assign and manage additional outputs beyond your main program feed, perfect for overflow rooms, recording decks, or web streams.

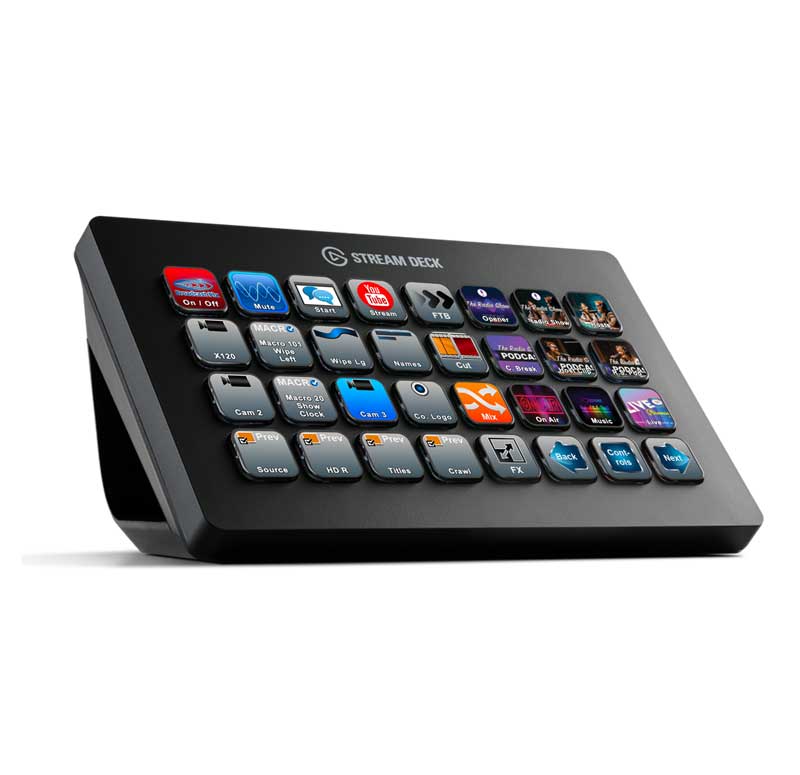

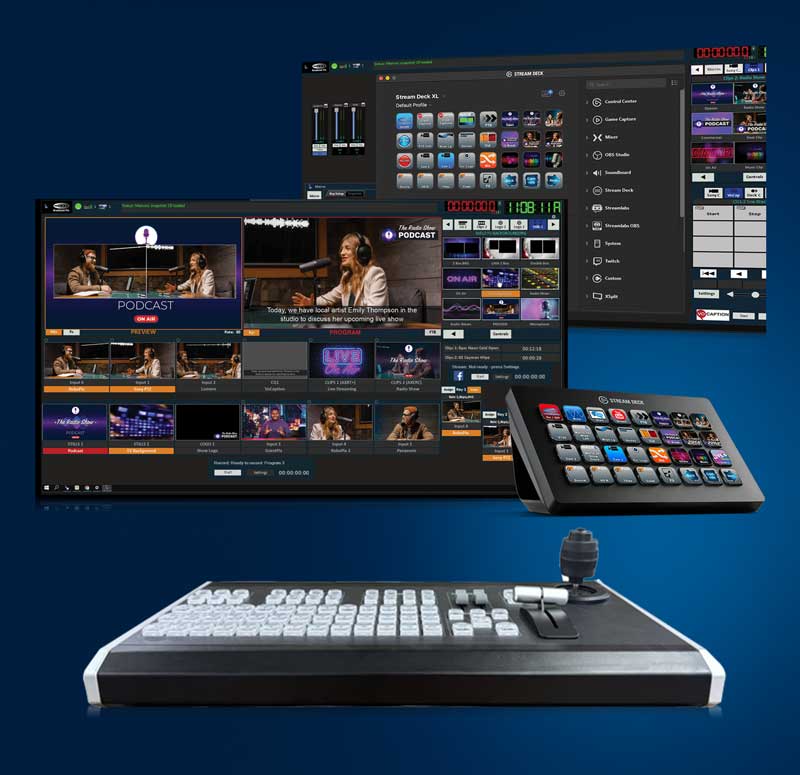

Stream Deck Integration for Expanded Control
Take control even further with Elgato Stream Deck integration, fully supported by Broadcast Pix.
- Use predefined profiles from Broadcast Pix or design your own layouts.
- LCD buttons display icons, images, and tally feedback, giving you visual confirmation of every action.
- Perfect for operators who want a customizable, flexible workflow that evolves with each production.
Tally and Multi-View Feedback
- Integrated Tally System: Clear color-coded indicators show when a source is on-air (red), on preview (green), or idle (white).
- Multi-View Support: Additional tally colors extend status feedback across multiple displays, making complex productions easier to manage.
Compact, Ready-to-Work Design

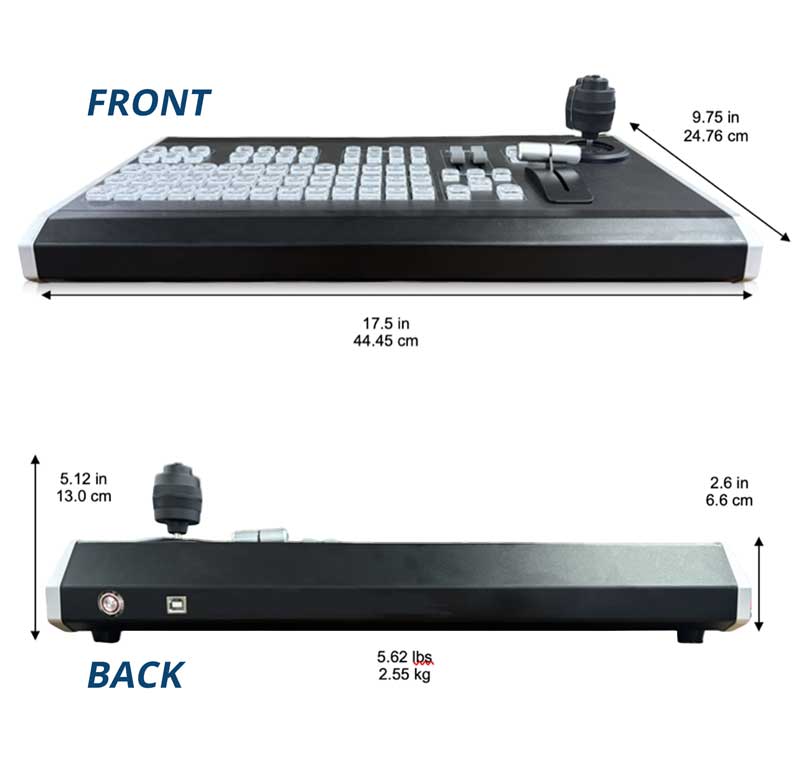

- Tabletop Form Factor: Compact and ergonomic at just 17.5 x 9.75 x 2.6 in (44.45 x 24.76 x 6.6 cm).
- Lightweight: Weighs only 6.62 lbs (2.55 kg) for easy transport and installation.
- Plug-and-Play: Connects via USB-B (up to 16.4 ft / 5m without extender) for simple setup.
- System Compatibility: Works with all Broadcast Pix Hybrid FX, MX, and GX systems running Version 10 software or later.
Why Choose the 750?
The 750 combines the speed of a hardware control surface with the flexibility of Broadcast Pix’s powerful software ecosystem. It’s the perfect fit for production teams that want:
- A dedicated physical panel for reliability under pressure.
- The ability to scale complexity with Stream Deck integration and Macros.
- Direct, intuitive controls for video, graphics, audio, and cameras—all in one compact unit.
